EMF Meter | GQ EMF-390 Multi-Field Electromagnetic Radiation 3-in-1 EMF ELF RF meter | 5G Cell Tower Smart meter Wifi Signal Detector RF up to 10GHz with Data Logger and 2.5Ghz Spectrum Analyzer

• Multiple high-sensitivity sensors were installed for detecting Power lines, Smart meters, Cell phones, microwaves etc.
• Identify/recognize the common possible sources, such as Power lines, Cell Towers, Microwaves, Static, etc.
• Safety suggestion lets you understand the current situation instantly.
• Detects 5G network signal and RF up to 10Ghz
• Built-in RF Spectrum analyzer and GQ RF Browser for real-time RF monitoring.

• The GQ EMF-390 advanced multi-function digital EMF ELF meter is designed and developed by GQ Electronics, USA. The customers include individuals, organizations and the governments(Eg. US Department of State). It is a portable and convenient device. It can be used in general-purpose tests, detection, and other scientific applications. Such as Power Line, WiFi, Cell phone, 2G/3G/4G/5G Cell tower(low-medium band), microwaves, smart meters, etc. The device integrated features include three-axis Electromagnetic Fields, Electric Field, Radio Frequency(up to 10Ghz), and a bonus feature RF Spectrum Power Analyzer(five bands up to 2.504Ghz).
• The meter is able to identify/recognize the common source from EMF/RF measured, such as Power Line, WiFi/Cell phones, cell towers, microwaves, etc. It also comes with a built-in audible and visual alarm. It can be used for EMF, ELF, EF, RF detection and monitoring both indoor and outdoor, as well as in other similar environments.

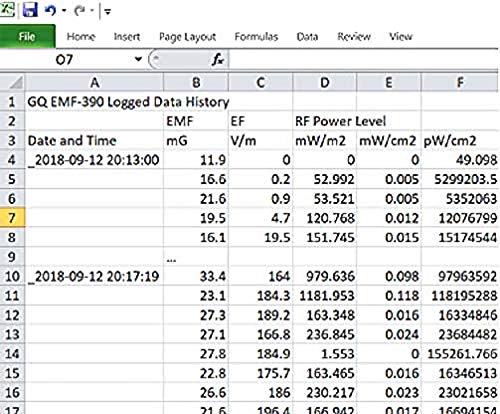

• The EMF-390 has built-in flash memory for data logging, it can log the real-time data every second with a timestamp. The history data can be downloaded when the device is linked to a PC. The free PC software can be downloaded from the manufacture's website.

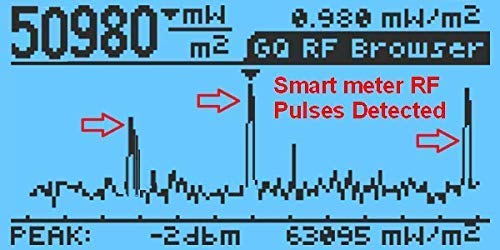

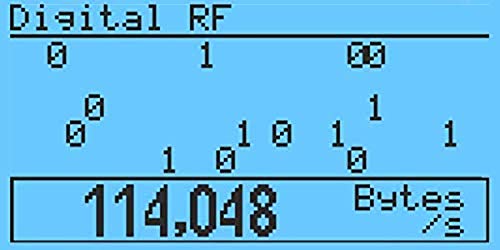

• The unique GQ RF Browser feature visualizes the RF radiation precisely on the screen. With RF Browser, the user is able to see high-speed RF signals, such as Smart meter, cell phone transmission, estimates Digital RF transmission data in bytes, and RF power spectral histogram. The EMF-390 RF Browser is THE ultra-fast response RF detector. It can detect 5G signals as fast as 250nS (nanosecond) digital RF pulses. No worry about missing any RF pulses. All other same-level meters in the market can only detect partial RF pulses and will always give false low RF readings.
• The meter has installed multiple sensors to ensure maximum scale/range measurement and the highest accuracy.
• With an open communication protocol, the user is able to send commands to the unit to get all data remotely. This allows the device to be easily integrated into any other system,
• The device is equipped with a USB port, utilized for communication, and external power supply/charging of internal rechargeable Li-Ion 3.7V battery.
• GQ EMF meter is all you need to detect EMF, ELF, EF and RF radiation

Specification

EMF (Electromagnetic Field) Triple axis (X, Y, Z) , 0.0~500mG, 0.0 to 50µT.

EF (Electric Field): 0-1000V/m, Res: 1 V/m

RF: 0.02µW/m² ~ 9999mW/m², Detectable Frequency: up to 10GHz

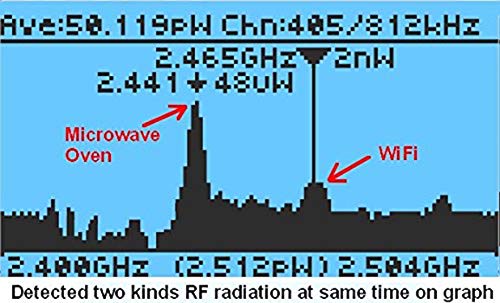

RF Spectrum Analyzer: 50– 65MHz, 65 – 76MHz, 76 – 108MHz , 300 – 348MHz, 387– 464MHz, 779-928MHz ,2.4 – 2.504GHz

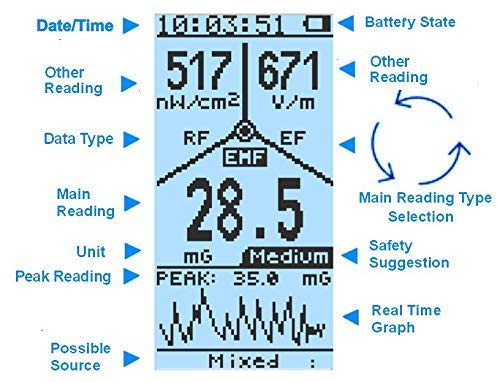

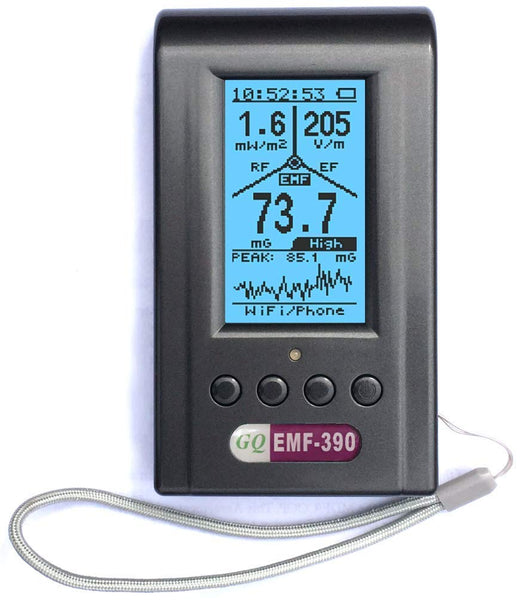

New display maximizes the amount of information

• All-in-One display lets you see reading from all sensors at once.
• Advanced features and multi-sensors to ensure the best detection from EMF, EF, and RF.
• Compact design for easy testing and measurement.
• Safety suggestion lets you understand the current situation instantly.
• Radiation source recognition provides the fastest way to find out the radiation source.

Classic display option is quick to adapt the application

• With a traditional analog-style display, the data becomes even easier and faster to understand.
• Left and right vertical bars are also indications of the EF and EMF radiation level at a glance.
• Safety suggestion in large font for easier reading.
• Real-Time clock displays the current time for time-sensitive testing.
• Front LED visualizes alarm when triggered.

For technical support, please visit our support forum: https://www.gqelectronicsllc.com/forum/default.asp

GQ EMF-390 1:1 Simulator
Try the exact user interface demo(simulation) software of GQ EMF Meter before you buy it, please visit GQ Electronics LLC download page.Click here to download

User Manual/User Guide
A complete user manual/guide can be downloaded from GQ Electronics download page.Click here to download
